SHELTERS

– SAFETY, MADE TO MEASURE

Security in collective garages is now a top priority as rates of vandalism and theft have increased. The robust and proven shelter system from Käuferle divides collective garages into single or double parking spaces, offering you particularly effective protection. Both single and double parking space divisions are available in various designs. We have taken care to meet the requirements of the construction authorities without compromising on appearance. Our panel variant Standard SG complies with all country-specific fire protection regulations. Made-to-measure production is our strength. All building units are made to the correct dimensions before leaving the factory. This means fast and easy installation on site – even for retrofitting. The low purchase price will quickly pay off thanks to improved rentability.

ADVANTAGES

Space-saving
Easy to use thanks to low weight of door leaf, door panels constructed in lightweight aluminium
Low wear and tear

Low-noise door movement
Highly corrosion resistant
High degree of design flexibility
Powder coating possible

OVERHEAD SHELTER DOOR – LOW-NOISE AND MAINTENANCE-FREE

Low-noise and maintenance-free
Door leaf in lightweight aluminium
Stainless steel floor mount
Improved lifting mechanism with guide rail
Increased burglary protection
Space-saving
Easy to use

Low wear and tear
Low-noise door movement
Highly corrosion resistant
High degree of design flexibility
Powder coating possible

SLIDING SHELTER DOOR – COMPACT AND SMOOTH-SLIDING

Door leaf in lightweight aluminium
Aluminium guide rail
Top quality low-noise sliding apparatus
Galvanised floor guide, optionally in stainless steel
Innovative integrated drive technology
Increased burglary protection
Space-saving

Easy to use
Low wear and tear
Low-noise door movement
Highly corrosion resistant
High degree of design flexibility
Powder coating possible

REVOLVING SHELTER DOOR – EASY TO USE

Door leaf in lightweight aluminium
Aluminium inside frame
Stainless steel floor mount
Improved lifting mechanism with guide rail
Increased burglary protection
Space-saving

Easy to use
Low wear and tear
Low-noise door movement
Highly corrosion resistant
High degree of design flexibility
Powder coating possible

DETAILS

STANDARD DOOR FILLINGS AND COVERS

Variants Standard

Our panel variant Standard SG corresponds to all country-specific fire protection regulations

Variant SG

Welded wire mesh 100/100/4, galvanised

Variant QR

Aluminium square tube 20/20, E6/EV1 anodised

Variants Function

The Function variant fillings area available at no extra charge in the following colours or galvanised.

Variant SB

Ribbed steel sheet

Variant SBR

Ribbed steel sheet, diamond-shaped perforations

Variant SBL

Ribbed steel sheet, round perforations

Variants Premium

Available in RAL/DB colours of your choice at a small surcharge. In addition to the variants presented, special fillings such as glass or facade panels can be implemented inexpensively.

Variant GB

Smooth aluminium sheet metal, E6/EV1 anodised

Variant QG

Aluminium sheet metal with square perforations QG 20/50, E6/EV1 anodised

Variant RV

Aluminium sheet metal with round perforations RV 5/8, E6/EV1 anodised

Color variety

The external door fittings SB, SBR and SBL, are available with the outside in the adjacent colours without extra charge. Combinations within our standard colours are possible. More colours are available on request. Door frame, fittings and door leaf frame are galvanised. For aluminium door leaves in standard E6/EV1 door leaves and fittings are available in the colour of your choice.

galvanised

RAL 9016 Traffic white

RAL 9006 White aluminium

RAL 7040
Window grey

RAL 7016
Anthracite grey

INSTALLATION

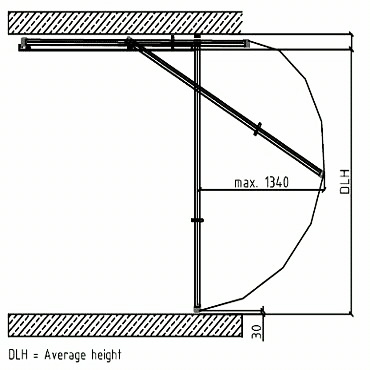

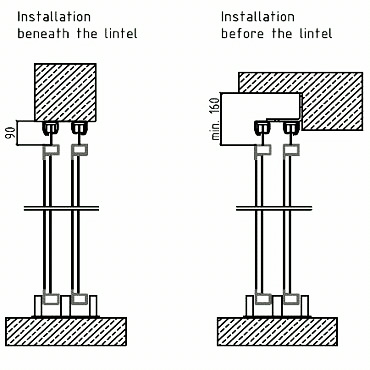

Installation Overhead shelter door

TYP N

from widths of 2,110 mm / up to width of 3,010 mm
* Space required underneath ceiling/beam max. 135 mm

TYP VS

from widths of 3,010 mm / from heights of 2,010 mm
* Space required underneath ceiling/beam max. 170 mm

Connection details
	Typ N	Typ VS
A	5	8
B	50	80
C	10	10
D	max. 40	max. 70
E	ca. 1930	ca. 2010

ZLB = Frame clearance width

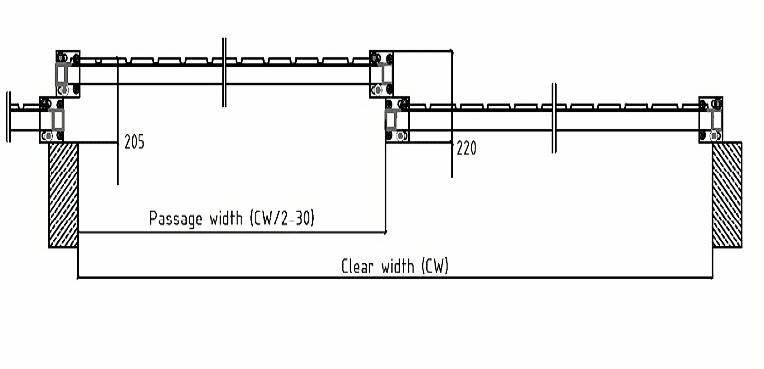

Installation Sliding shelter door

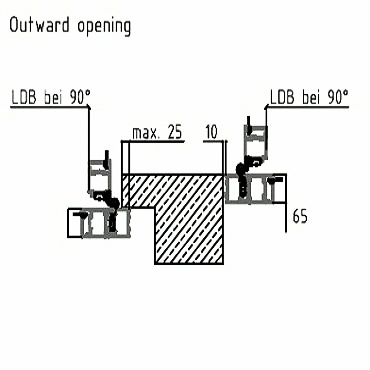

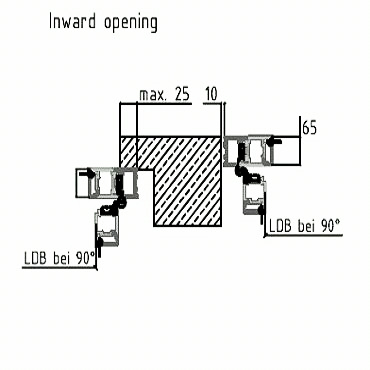

Installation Revolving shelter door

PARTITION WALLS

Zur seitlichen Abtrennung Ihres Stellplatzes bieten wir Ihnen unsere UTS®-Trennwand-Systeme.
Mehr Informationen und Details

Partition Wall UTS S

The UTS® partition wall system type S has proven to be an extremely stable and cost-effective solution in many buildings, both domestic and abroad. The transparent steel slat system makes a technical and robust overall impression. The 119 mm wide slats are joined with the carrier sections to the wall or door element at intervals of 33 mm by a reliable punch rivet procedure already proven in the automotive industry, thus ensuring optimum ventilation of your utility rooms.

More information and details about partition wall system UTS type S

Trennwand UTS LB

The UTS® partition wall system type LB with wall elements made of galvanised and corrugated perforated steel sheet Rg5/8 creates a high-quality and modern appearance with subtle transparency. Perforated sheet metal ensures the highest finger protection with optimum ventilation; a high degree of stability is achieved by means of the vertical corrugation of the perforated sheet metal!

More information and details about partition wall system UTS type LB

Partition Wall UTS G

The UTS® partition wall system type G is the closed, blackout variant of the proven open system S. Due to the overlapping arrangement of the steel slats, closed wall elements are created that offer optimum privacy protection. Sufficient ventilation is ensured by the clearances between the floor and the ceiling.

More information and details about partition wall system UTS type G

Trennwand UTS SG

The UTS® partition wall system type SG is the inexpensive solution for partitioning cellars and lofts. It also ensures brightness and a high degree of transparency in your utility rooms. The grid with a mesh width of 50 x 200 mm and a wire thickness of 6.5 mm creates a light and open atmosphere and also offers optimum ventilation and illumination.

More information and details about partition wall system UTS type SG

COMPONENTS

Door drive

Retrofitting of a maintenance-free door drive possible | Door drive extremely quiet due to toothed belt | Operation via hand-held transmitter | Safety reverse function in case of obstacles | Emergency unlocking function from inside and outside in case of power failure | Automatic light activation | Plug-in 230 V mains connection

Key switch

The key switch consists of an aluminium housing and built-in key switch with aluminium covering plate, prepared for profile cylinder (single cylinder 10/30).

Radio control

As single or multi-channel 40/433 MHz control system, freely codeable, consisting of a radio receiver and an arbitrary number of remote controls.

Sound insulation

Door jamb, guide rails and drive units are, where possible, mounted with special anti-vibration dowel plugs. This reduces noise and vibration transmission.
